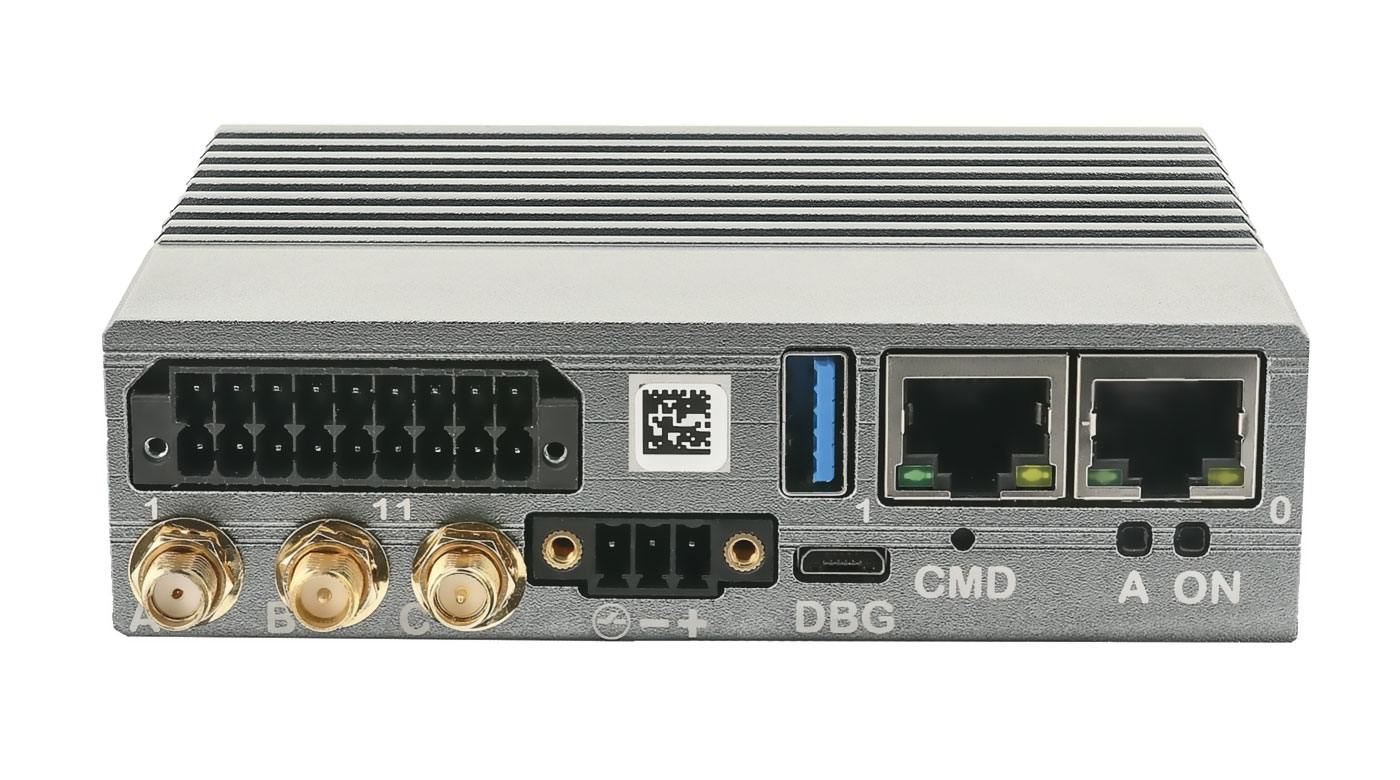

IOT-GATE-RPI5 - Industrial Raspberry Pi
IoT Edge Gateway

Overview

	Long-term Availability		Industrial Build and Quality		Mainline Linux and Yocto
	In-House Manufacturing		Direct Engineer Support		Configure-to-Order

Specifications

"Option" column specifies the configuration code required to have the particular feature.
"+" means that the feature is always available

CPU, Memory and Storage
CPU	Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz	+
GPU	Broadcom VideoCore VII OpenGL ES 3.1, Vulkan 1.2	+
RAM	2GB – 16GB, LPDDR4	D
Storage	16GB – 64GB eMMC flash, soldered on-board	N
Storage	256GB NVME flash, optional module	NB
AI accelerator	Hailo-8L, optional M.2 module	AIHL
Network
Cellular Modem	4G/LTE CAT-4 cellular module, Telit LE910 Worldwide LTE, UMTS/HSPA	JT910G
Cellular Modem	SIM card socket	+
WiFi and Bluetooth	802.11ac WiFi interface Bluetooth 5.0 BLE 2.4GHz / 5GHz rubber duck antenna	WB
LAN	1000Mbps Ethernet port, RJ45 connector	+
LAN	100Mbps Ethernet port, RJ45 connector	+
Wireless Mesh	Bluetooth mesh, Thread, Zigbee Nordic Semiconductor nRF52840	WMN
GNSS	GPS Implemented with Telit LE910 module	JT910G
I/O
Industrial I/O	2x RS485 (half-duplex) \| CAN-FD ports Isolated, terminal-block connector	SIO
Industrial I/O	4x digital outputs / inputs Isolated, 24V compliant with EN 61131-2, terminal-block connector	SIO
USB	1x USB3.0 port, type-A connector 1x USB2.0 port, type-A connector	+
Display Output	2x DVI-D, up to 4Kp60	+
System
RTC	Real time clock with on-board coin-cell battery	+
Watchdog	Hardware watchdog	+
Debug	1x serial console via UART-to-USB bridge, micro-USB connector	+
Debug	USB programming port, micro-USB connector	+
Security	TPM 2.0, Infineon SLB9673	+
Indicators	1x programmable dual-color LED 1x power LED	+
POE	Support for PoE (powered device)	+

Electrical Specifications
Power Supply	12V-24V DC (-20%/+20%) Reverse voltage protection
Power Consumption	3W - 9W, depending on system load and configuration
Mechanical Specifications
Dimensions (H x W x D)	105 x 80 x 30 mm
Housing material	Aluminum
Cooling	Passive cooling, fanless design
Weight	550 gram
Compliance
Regulatory	FCC, CE RED
EMC	EN 55032/5, EN 61000-6-2, EN 61000-6-3
Safety	EN/UL/IEC 62368-1
Reliability and Environmental
MTTF	> 200,000 hours
Warranty	5 years
Operation Temperature	Commercial: 0° to 60° C Industrial: -40° to 80° C
Storage Temperature	-40° to 85° C
Relative Humidity	10% to 90% (non-condensing)

Ordering Info

For initial testing and development, we recommend ordering one of the stock models
It is recommended to order together with the IOTG-RPI5 EVK SET
MESH and AI modules can be ordered as separate items

P/N template: IOTG-RPI5-DxNx-[NB256]-[AIHL]-[WB]-[JT910G]-[SIO]-[WMN]-[Xx]-[Tx]

Feature	Options	P/N code
RAM and eMMC	2GB RAM + 16GB eMMC 4GB RAM + 32GB eMMC 8GB RAM + 64GB eMMC 16GB RAM + 64GB eMMC	D2N16 D4N32 D8N64 D16N64
Secondary Storage	none 256GB NVME module	- NB256
AI Acceleration Module	none Hailo-8L, M.2 module	- AIHL
WiFi and Bluetooth	none 802.11ac WiFi and Bluetooth	- WB
Cellular Modem	none LTE CAT4, Telit LE910C4 (global)	- JT910G
Industrial I/O	no 2x RS485 \| CAN-FD +4x DIO	- SIO
Mesh Module	none Nordic NRF52840	- WMN
Software Preloading	none Raspberry Pi OS Custom image	- XL Xx
Temperature range	Commercial Industrial Certified Industrial Tested	- TIC TIT

Accessories

The following accessories are not included with the gateway and need to be ordered separately.

Item	Description	P/N and Docs
	Cellular antenna Cellular rubber duck antenna with SMA connector Can be used together with cellular antenna extender or assembled on the gateway SMA connector	IOTG-ACC-ANTCELL datasheet 3D model
	Cellular antenna extender 2m antenna extender cable with magnetic mount Should be used together with cellular antenna	IOTG-ACC-ANTEXT datasheet
	PSU with terminal plug adapter Wall mount PSU with terminal plug adapter Input 100-240VAC 50/60Hz, 36W output 12VDC 3A Includes US, EU, UK, AU AC blades	IOTG2-ACC-PSUTB3 datasheet
